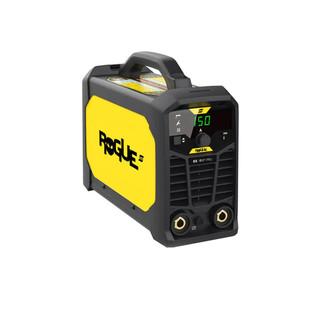

ESAB Rogue ES151iP Pro Welder, 120-230V

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904.

A robust, durable power source for professional welding. Uses the latest high performance power electronics and digital control to provide state-of-the-art welding performance and reliability, ensuring a precise consistent arc. Provides smooth DC welding power for metals such as alloyed and non-alloyed steel, stainless steel, and cast iron. Featuring Arc Force and Hot Start settings for more control over the arc. Digital microprocessor offers more control over all arc parameters and provides best-in-class welding performance to weld electrodes up to 3.2 mm (1/8"). New Pulse SMAW functionality enhances the machine's performance and improves the heat input control to minimize distortion of thin gauge materials, facilitate out-of-position welding with no undercuts, and reduce spatter to effectively avoid welding defects.

• Dual voltage input power provides the flexibility to use on either 120V or 230V outlets
• Superior Arc characteristics for smooth and stable performance (including special mode for stick 6010)
• Suitable for use with generators (7kW recommended)
• Easy to use and adjust a wide range of arc parameters for more control over your weld
• Lightweight welder with carrying handle for easier transport
• PFC ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 300' (12 AWG size)
• Mfr.'s 3-year Warranty

Primary Voltage: 1 ph 120–230 VAC +/-15%, 50/60 Hz
Maximum Output: 150A
Rated kVA: 3.9kVA
Energy Save Mode: 50W
Open Circuit Voltage: 78V DC
Stick (SMAW) Welding Output (230V): @25% Duty Cycle 150A/25.2V, @60% Duty Cycle 84A/23.4V, @100% Duty Cycle 65A/22.6V
Stick (SMAW) Welding Output (120V): @25% Duty Cycle 90A/23.6V, @ 0% Duty Cycle 58A/22.3V, @100% Duty Cycle 45A/21.8V
TIG (GTAW) Welding Output (230V): @25% Duty Cycle 150A/15.2V, @60% Duty Cycle 84A/13.4V, @100% Duty Cycle 65A/12.6V
TIG (GTAW) Welding Output (120V): @25% Duty Cycle 130A/15.2V, @60% Duty Cycle 84A/13.4V, @100% Duty Cycle 65A/12.6V
Current Range: 10-150 on 230VAC, 10-130 on 120VAC, depending on process
Pulse SMAW frequency: 0.2 - 100Hz
Operating Temperature: +14 to +104°F
Enclosure Class: IP23S
Size: 15.8" x 6" x 10.4"
Weight: 18.2 lbs.

Includes
Power source with 10' mains cable and plug
Electrode holder with 10' cable and 10' return cable
230V to 120V Multi-Voltage Adapter Plug
Shoulder strap
