DOBOT Workstation For MG400 & E6 with Siemens PLC System Module

Description

A teaching platform which integrates a robot, control system, vision system, conveyor belt, and other components. It adopts a modular design and can be combined flexibly and easily for automation simulation, such as object detection, grabbing, handling, palletizing, and assembly, as well as teaching projects such as robot system calibration, trajectory tracking, and communication control.

• Compact and powerful, it integrates the PLC, HMI and remote IO and is also easy to install and put away.
• Provides 24 input and 22 output IO interfaces, supports PROFINET, TCP and Modbus communication, which are compatible with the DOBOT Collaborative Robot Universal
• Platform and used with DOBOT MG400, Magician E6 and the CR3.
• Configured with a 7-inch touch screen for quick monitoring and control of equipment.
• With EU CE certification and RoHs certification, meeting the access standards of most countries and regions.

Compatibility: CR3, Magician E6 and MG400 Dobots
Platform Modules: PLC System Module, Function Plate Storage Box, Mini Vacuum Source, Electrical Control Box, Guide assembly plate, Button Control Box, Vision Kit, Tool Box

Model: DT-BE-R-15
Voltage: 24V DC
Total Power: Max 75W
Full Load Current: 3A
Screen Size: 7"
Resolution: 800 x 480
CPU: 1212C DC/DC/DC
Working Storage: 75 KB
Loading Storage: 2 MB
High Speed Counter: 4
Integrated I/O: DI × 8, DQ × 6, AI × 2
Extensibility: Signal Board, two Signal Module, Comm. Module
Size: 13.18" × 10.62" × 9.25"
Weight: 7.71 lbs.

Includes
PLC System Module
Vision Kit
Conveyor Belt Kit
Mini Vacuum Source
Function Plate Storage Box
Guide Assembly Plate
Button Control Box
LED Status Indicator
Electrical Control Box
Tool Box
Aluminum Base

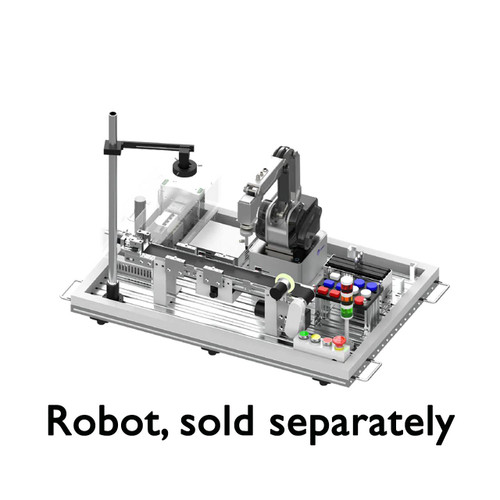

DOBOT Robot, sold separately.
