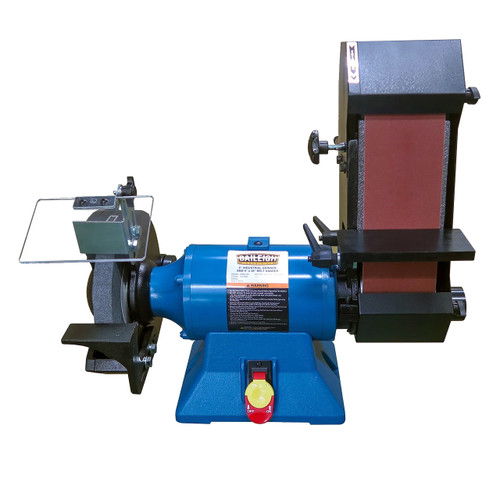

Baileigh 8" Bench Grinder, 4" Belt Grinder, 115V

Description

This dual-purpose machine has a solid cast structure that ensures rigidity and vibration reduction. Fully sealed ball bearings prevent machine breakdowns. Recommended for smoothing over burrs on metal, chamfering edges for welding, and cleaning up castings.

• Runs on 115 volts single-phase power.
• Accepts 8" x 1" x 5/8" grinding wheels.
• 4" x 36" sanding belt.
• Turns at 3,600 rpm.
• 1-piece quick adjusting spark guard.
• CSA listed and approved
• Manufacturer's 1-year warranty.

Power: 1HP, 1ph, 60hz
Voltage: 115/230V, Prewired 115V
Listed FLA (Full Load Amps): 11/5.5A
Speed: 3,600 RPM
Starting Capacitor: 200MFD, 125VAC
Running Capacitor: 35µf, 350V
On/Off Switch: Toggle with Safety Key, 125/250V, 20/12A
Power Transfer: Direct Drive
Power Cord: SJT 16AWG x 3C, 6'
Power Plug Installed: 5-15P, 125V/15A
Recommended Minimum Circuit Size: 15A
Sound Emission Without Load: 75 Db
Shaft Diameter: 5/8"
Threads: 5/8"-11UNC (Left Turn)
Grinding Wheel Size: 8" x 1"” x .625"
Grinding Wheel Grit: 36
Grinding Wheel Material: Aluminum Oxide
Motor Housing: Sheet Metal
End Cover: Aluminum
Base Cast: Iron
Tool Rest: Cast Iron
Inner Wheel Guard: Cast Iron
Outer Wheel Guard: Aluminum
Flange Washer: Sheet Metal
Eye Shield: 5.59" x 3.94" x 0.20"
Dust Port: 2" dia.
Sanding Belt Size: 36" x 4"
Sanding Belt Type: 80 Grit, Aluminum Oxide
Belt Speed: 3,769 SFPM
Belt Table Tilt: 45° Down
Belt Table Size: 6.30" x 2.95"
Drive Wheel Size: 4" x 4.09"
Tool Rest Tilt: 45° Down
Tool Rest Size: 5.118" x 3.15"
Belt Table: Cast Iron
Bracket of Belt Table: Sheet Metal
Foot Print: 9.5" x 8.06")
Mounting Hole Dimensions: .433"
Distance Between Mounting Holes: 8.47"
Overall Size: 22.49"L x 20.79"W x 20.85"H
Weight: 75 lbs.
Shipping Size: 21.46"L x 24.60"W x 16.93"H
Shipping Weight: 90 lbs.

Includes
eye shield
sanding table
adjustable tool rest
1-1/4" wheel dresser
disc table
dust port
hardware
